Understanding MFC Application Control Flow: A Deep Dive into SDI, MDI, and Dialog Applications

MFC - SDI, MDI, and Dialog Applications

Introduction

Microsoft Foundation Classes (MFC) remains a crucial framework for Windows desktop development, particularly in enterprise applications. In this deep dive, we'll explore the three fundamental MFC application architectures: Single Document Interface (SDI), Multiple Document Interface (MDI), and Dialog-based applications. We'll examine their control flows, object creation sequences, and practical implementations.

The Three Pillars of MFC Applications

1. Single Document Interface (SDI)

SDI applications are like a one-track mind – they handle a single document at a time. Think of applications like Notepad, where you work with one file in one window.

Key characteristics:

• One document active at a time

• Simple window hierarchy

• Direct frame-to-view relationship

• Lightweight memory footprint

When to use SDI:

• Simple document editing tasks

• Single-focus applications

• Tools that process one file at a time

• Applications requiring minimal window management

2. Multiple Document Interface (MDI)

MDI applications are the multitaskers of the Windows world. Think Microsoft Excel or Word, where multiple documents live within a parent window.

Key characteristics:

• Multiple active documents

• Parent-child window hierarchy

• Complex window management

• Shared resource framework

When to use MDI:

• Complex document management systems

• Applications requiring document comparison

• Tools with multiple concurrent workflows

• Enterprise-level software suites

3. Dialog-Based Applications

The simplest of the three, dialog-based applications are perfect for task-focused tools and utilities.

Key characteristics:

• No document-view architecture

• Form-centric interface

• Simplified message handling

• Focus on user input

When to use Dialog-based:

• Configuration utilities

• Simple data entry forms

• Quick tools and utilities

• Wizard-style applications

Deep Dive: Control Flow Patterns

SDI Control Flow

// 1. SDI Application Core Classes
class CMyApp : public CWinApp {
public:
    BOOL InitInstance() {
        // Register document template
        CSingleDocTemplate* pDocTemplate = new CSingleDocTemplate(
            IDR_MAINFRAME,
            RUNTIME_CLASS(CMyDoc),
            RUNTIME_CLASS(CMainFrame),
            RUNTIME_CLASS(CMyView));
        AddDocTemplate(pDocTemplate);

        // Create main frame window
        CMainFrame* pFrame = new CMainFrame;
        if (!pFrame->LoadFrame(IDR_MAINFRAME)) return FALSE;

        m_pMainWnd = pFrame;
        pFrame->ShowWindow(SW_SHOW);
        pFrame->UpdateWindow();
        return TRUE;
    }
};

class CMainFrame : public CFrameWnd {
    DECLARE_DYNCREATE(CMainFrame)
protected:
    BOOL PreCreateWindow(CREATESTRUCT& cs) {
        return CFrameWnd::PreCreateWindow(cs);
    }
    // Message map and handlers
    DECLARE_MESSAGE_MAP()
};

class CMyDoc : public CDocument {
    DECLARE_DYNCREATE(CMyDoc)
protected:
    BOOL OnNewDocument() {
        if (!CDocument::OnNewDocument())
            return FALSE;
        return TRUE;
    }
    // Document serialization and data members
};

class CMyView : public CView {
    DECLARE_DYNCREATE(CMyView)
protected:
    void OnDraw(CDC* pDC) {
        CMyDoc* pDoc = GetDocument();
        // Drawing code
    }
    // View message handlers
};

// 2. MDI Application Core Classes
class CMyMDIApp : public CWinApp {
public:
    BOOL InitInstance() {
        // Register document template
        CMultiDocTemplate* pDocTemplate = new CMultiDocTemplate(
            IDR_MYTYPE,
            RUNTIME_CLASS(CMyDoc),
            RUNTIME_CLASS(CMyChildFrame),
            RUNTIME_CLASS(CMyView));
        AddDocTemplate(pDocTemplate);

        // Create main MDI Frame window
        CMainMDIFrame* pMainFrame = new CMainMDIFrame;
        if (!pMainFrame->LoadFrame(IDR_MAINFRAME)) return FALSE;

        m_pMainWnd = pMainFrame;
        pMainFrame->ShowWindow(SW_SHOW);
        pMainFrame->UpdateWindow();
        return TRUE;
    }
};

class CMainMDIFrame : public CMDIFrameWnd {
    DECLARE_DYNCREATE(CMainMDIFrame)
protected:
    BOOL PreCreateWindow(CREATESTRUCT& cs) {
        return CMDIFrameWnd::PreCreateWindow(cs);
    }
};

class CMyChildFrame : public CMDIChildWnd {
    DECLARE_DYNCREATE(CMyChildFrame)
protected:
    BOOL PreCreateWindow(CREATESTRUCT& cs) {
        return CMDIChildWnd::PreCreateWindow(cs);
    }
};

// 3. Dialog-Based Application Core Classes
class CMyDialogApp : public CWinApp {
public:
    BOOL InitInstance() {
        CMyDialog dlg;
        m_pMainWnd = &dlg;
        INT_PTR nResponse = dlg.DoModal();
        return FALSE;
    }
};

class CMyDialog : public CDialog {
public:
    CMyDialog() : CDialog(IDD_DIALOG) {}

protected:
    virtual BOOL OnInitDialog() {
        CDialog::OnInitDialog();
        // Initialize controls
        return TRUE;
    }

    // Message handlers
    DECLARE_MESSAGE_MAP()
};

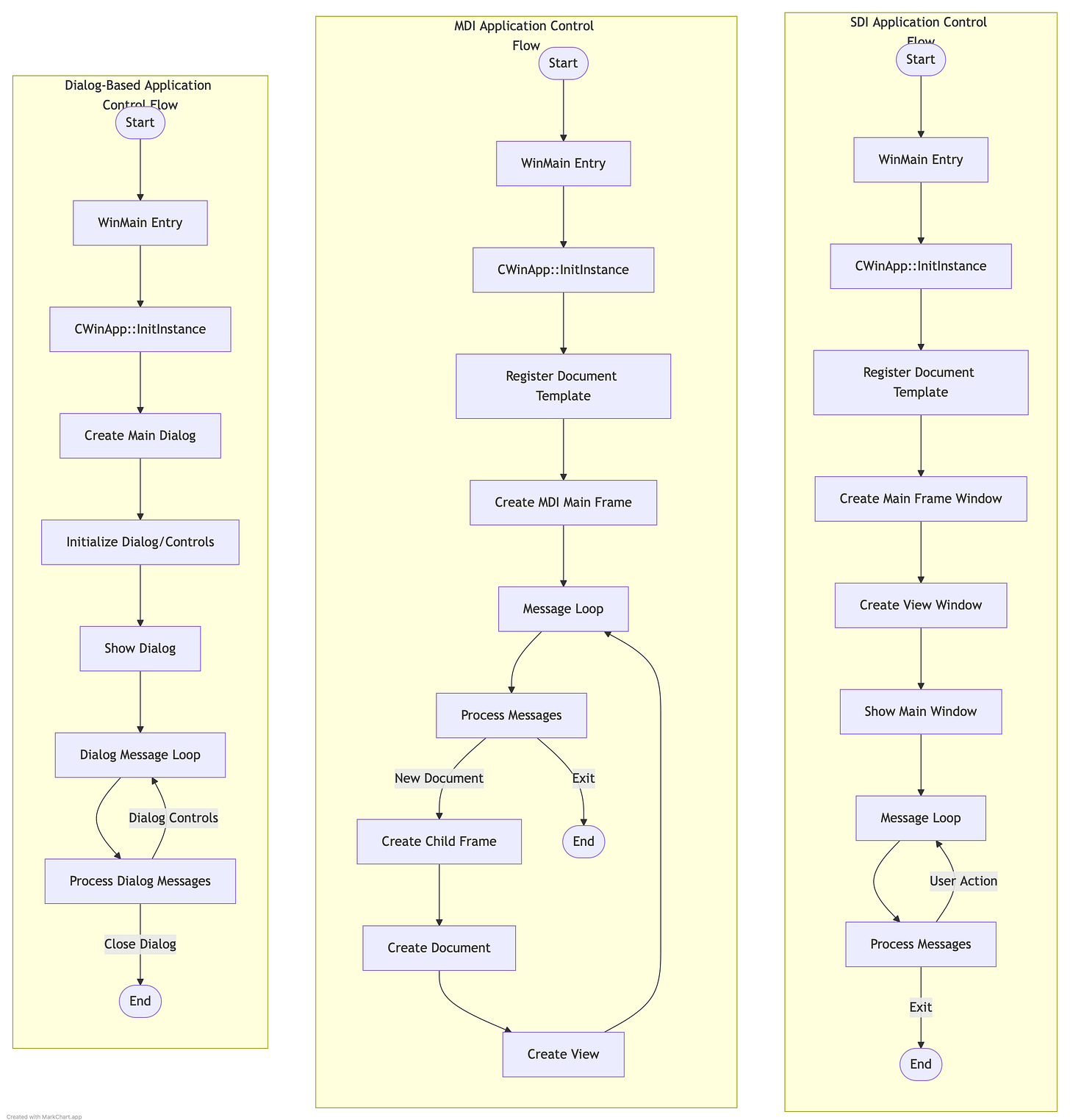

The SDI flow is straightforward:

1. Application initialization

2. Single frame window creation

3. Document template registration

4. View creation and attachment

5. Message loop processing

MDI Control Flow

MDI adds complexity with its parent-child relationship:

1. Main frame initialization

2. Child window template registration

3. Document-view pair creation per child

4. Synchronized message handling

Dialog Control Flow

Dialog applications simplify the flow:

1. Dialog resource loading

2. Control initialization

3. Event handler setup

4. Modal/modeless loop management

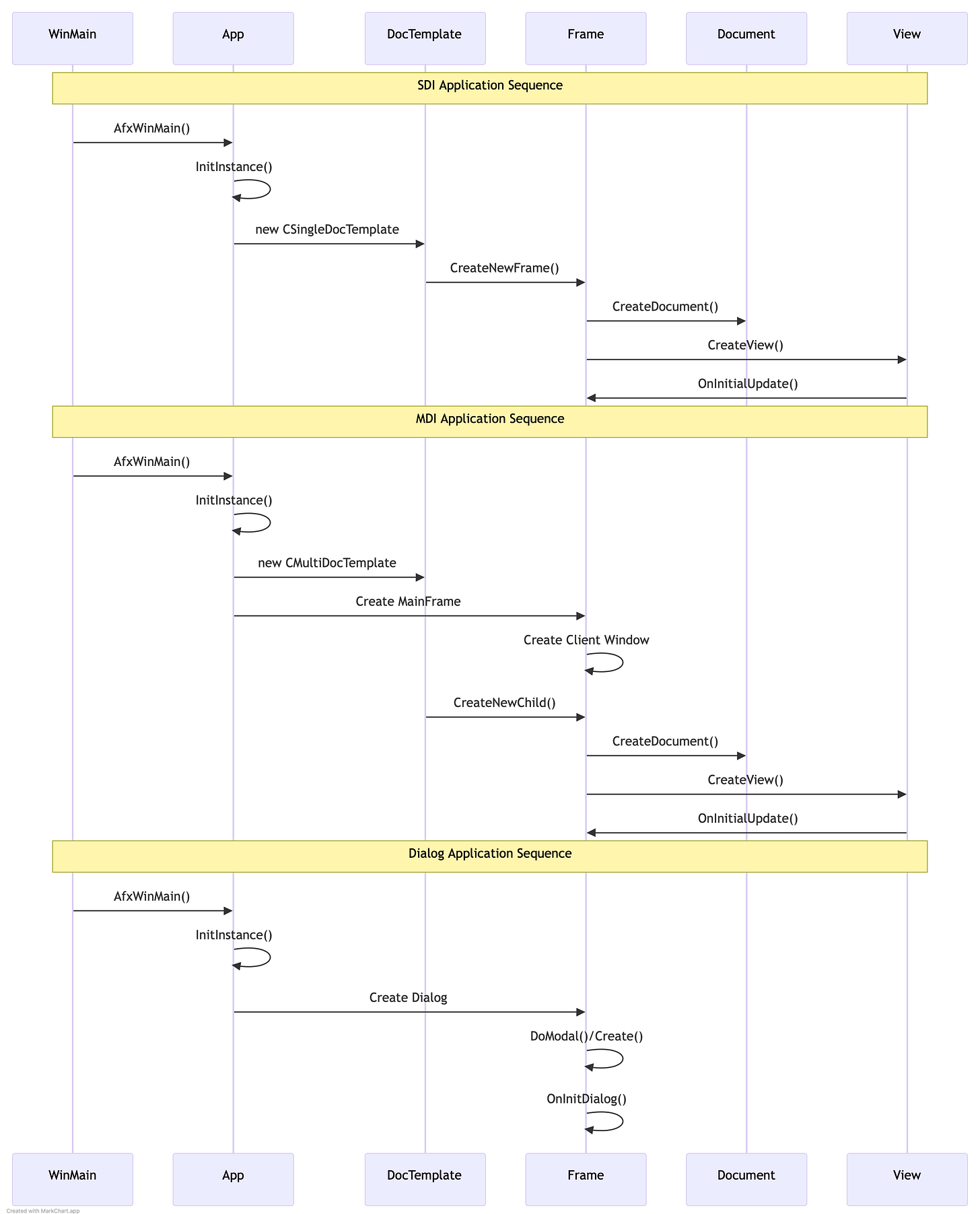

Object Creation Sequence: A Closer Look

SDI Creation Sequence

1. CWinApp derived class instantiation

2. Document template registration

3. Frame window creation

4. View attachment

5. Document binding

MDI Creation Sequence

1. Main frame initialization

2. Client window creation

3. Child frame management setup

4. Document-view pair generation

5. Window hierarchy establishment

Best Practices and Common Pitfalls

Do's:

• Use proper message maps for event handling

• Implement clean document-view separation

• Handle window destruction properly

• Manage resources effectively

Don'ts:

• Mix architecture patterns

• Ignore memory management

• Bypass MFC's document-view architecture

• Neglect error handling

Performance Considerations

Memory Management

• SDI: Lightweight, single instance

• MDI: Higher memory overhead

• Dialog: Minimal resource usage

Processing Overhead

• SDI: Efficient message routing

• MDI: Complex window management

• Dialog: Direct message handling

Conclusion

Choosing the right MFC architecture depends on your application's needs:

• SDI for focused, single-document applications

• MDI for complex document management

• Dialog-based for simple utilities and forms

Understanding these patterns helps build more maintainable and efficient Windows applications. The key is matching the architecture to your use case while following MFC best practices.

---
